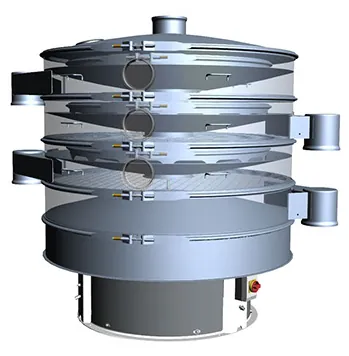

AMKCO Auxiliary Series (A.S.) Machine
The AMKCO Auxiliary Series (A.S.) Machine is a smart solution for operations that need more screening capacity without the room for a larger machine.
By placing a smaller-diameter screen deck on top of a standard separator, the Auxiliary Series increases available screening surface by up to 70% — while keeping the frame height the same. This two-tier setup enables the top deck to handle the bulk of material, while the lower deck fine-screens the remaining portion, boosting both throughput and efficiency.
It’s the ideal machine for high-capacity applications with limited floor space, such as starch processing, food powders, and fine chemical classification.
Working Principle
In a standard separator, all screening occurs on a single deck. But in the A.S. model, the upper screen deck is smaller and sits above the normal-sized bottom deck.
Material enters at the top and is quickly distributed over the smaller upper deck, which handles a large percentage of the total load. The finer portion that passes through then flows to the lower full-sized deck, where final separation occurs. This dual-level system increases capacity, prevents overloading, and ensures higher screening efficiency.
Product Feature
Double Deck, Dual Diameter
Top deck has a smaller diameter; bottom deck uses full screen area — maximizing usable surface in compact height.
Capacity Boost Up to 70%
Smart flow design increases total screening surface without expanding the footprint or frame height.
Retrofit or Standalone Use
Can be installed as a new unit or adapted to upgrade existing AMKCO separators.
Product Advantage
High Output, Small Footprint
Ideal for facilities with space constraints — more throughput, same machine footprint.
Optimized Material Flow
Top deck absorbs initial heavy load, reducing stress on lower screens and improving total screening performance.
Seamless Integration
Works with standard AMKCO accessories, screen frames, and discharge spouts for consistent compatibility.
FAQ
What is the difference between this and a regular AMKCO separator?
The A.S. model includes an upper smaller-diameter screen that increases the total screening surface and throughput without increasing machine diameter.
What kind of capacity improvement can I expect?
Depending on your product and mesh, capacity can increase by up to 70% compared to a standard separator.
Can I upgrade my existing AMKCO machine to an A.S. configuration?
Yes. The A.S. system can often be added to existing frames as an upgrade. Contact AMKCO Siam for assessment.
Is this machine suitable for fine powders?
Absolutely. It’s particularly effective for high-volume, fine powder applications where screen blinding and overflow are common challenges.
How does it save space?
The added screen surface is stacked vertically within the same frame diameter, so it doesn’t require additional floor area.
