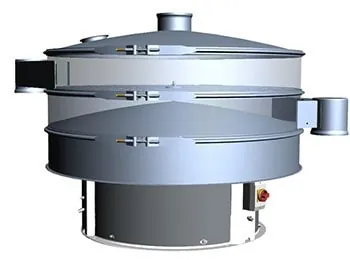

AMKCO Standard Vibratory Separator
The AMKCO Standard Vibratory Separator is a high-performance circular screening solution designed for versatile use in both dry and wet applications. Available in eight sizes ranging from 18” to 84”, it supports accurate separations from coarse scalping to ultra-fine classification (down to 25 micron / 500 mesh).
Ideal for industries like food, starch, minerals, chemicals, and waste treatment, this modular system enables users to adapt the machine over time — whether converting a single-deck unit into a multi-deck setup or adding anti-blinding accessories.
It’s the smart choice for plants that value high throughput, consistent quality, and long-term flexibility without major structural adjustments.
Working Principle
At the heart of the AMKCO separator is a three-dimensional vibratory motion generated by a vertically mounted motor with unbalanced weights. This motion – a combination of horizontal, vertical, and inclined forces – enables efficient particle movement across the screen.
By adjusting the lead angle between top and bottom weights, operators can fine-tune the product flow pattern and retention time. The result is precise separation across one to five screen surfaces, yielding up to six distinct fractions in a single pass.
Product Feature
Modular Design – Built to Evolve
From single-deck to multi-deck, from dry to wet — easily reconfigure the machine with standard components to suit changing production needs.
Precision Separation – Down to 25 Microns
Handles separation from large particles (2") to ultra-fine sizes (25 micron), supporting up to six fractions with exceptional accuracy.
Cleaning System Options
Select from self-cleaning kits, ball trays, rings, or ultrasonic systems — integrated seamlessly before or after purchase, based on testing and experience.
Product Advantage
High Throughput, Compact Footprint
Optimized screen area and vibration dynamics allow more material to be processed per hour with minimal floor space.
Flexible Integration into Any Process
Easily adapts to upstream/downstream systems. Optional oversized spouts, velocity reducers available for high-performance needs.
Hygienic & Certified for Food Contact
All wetted parts are stainless steel and can meet food-grade certifications — perfect for hygiene-sensitive industries.
FAQ
What is the maximum number of screen decks I can use in one machine?
Up to five screen surfaces can be installed, enabling six accurate fractions in a single machine.
Is it possible to add an ultrasonic kit or cleaning system after installation?
Absolutely. The modular design allows for retrofitting standard accessories like ultrasonic systems, self-cleaning kits, and rotary sprays without structural changes.
Why should I choose AMKCO over cheaper vibratory screens?
Unlike generic models, AMKCO offers higher capacity, precise separation, long screen life, food-grade construction, low power consumption and local support in Southeast Asia — resulting in a lower total cost of ownership.
Can I test my product before buying?
Yes. AMKCO Siam offers lab testing and pilot trials to ensure the right setup for your product and process.
What screen sizes are available?
Standard models range from 18” (450 mm) to 84” (2100 mm) in diameter, depending on your process capacity and space requirements.
